Machines for changing sleepers,
Hydraulic Sleeper Changer
Sleeper Changer/Ballast Excavator
Rail Sleeper Layer Attachments
Railway Sleeper Lifting and Changing Systems for Excavators
NG Attachments provides advanced
Railway Sleeper Lifting and Changing Systems for excavators, offering a reliable and fast solution for the removal and installation of railway sleepers (traverses) during rail maintenance and renewal operations. These attachments are designed to minimize manual labor, increase safety, and enhance precision on job sites.Thanks to their rugged hydraulic design and adjustable gripping arms, our sleeper systems ensure firm control and efficient handling of both wooden and pre-stressed concrete sleepers. Whether you're replacing a single sleeper or conducting full-line rehabilitation, NG Sleeper Changing Attachments integrate seamlessly with your existing fleet and offer productivity even in limited space environments.
Key Advantages
- Quick and secure removal or placement of railway sleepers
- Suitable for wooden and concrete types
- Hydraulic clamping system with optional rotation
- High gripping force with minimal damage to sleeper
- Compatible with excavators from 6 to 25 tons
Applications
- Railway sleeper replacement operations
- Railway construction and modernization projects
- Emergency maintenance and spot repair jobs
- Urban or rural railway line refurbishments
Technical Specifications
| Model | Sleeper Type | Gripping Range (mm) | Rotation | Weight (kg) | Excavator Class (tons) |
|---|
| NG-SLP-100 | Wooden | 240–300 | Manual | 250 | 6–10 |
| NG-SLP-200 | Concrete | 300–350 | 180° Hydraulic | 430 | 10–16 |
| NG-SLP-300R | Concrete/Wood | 320–380 | 360° Hydraulic | 510 | 16–25 |
Contact for Export and Custom Orders
Need a specialized sleeper lifter or full railway replacement system?
Get in touch with NG Attachments to receive your quotation, technical drawing, and logistics support. All products are CE certified and available for worldwide delivery.
📸 Instagram |
📘 Facebook |
🔗 LinkedInSleeper Changers
Rail Sleeper Layer Attachments

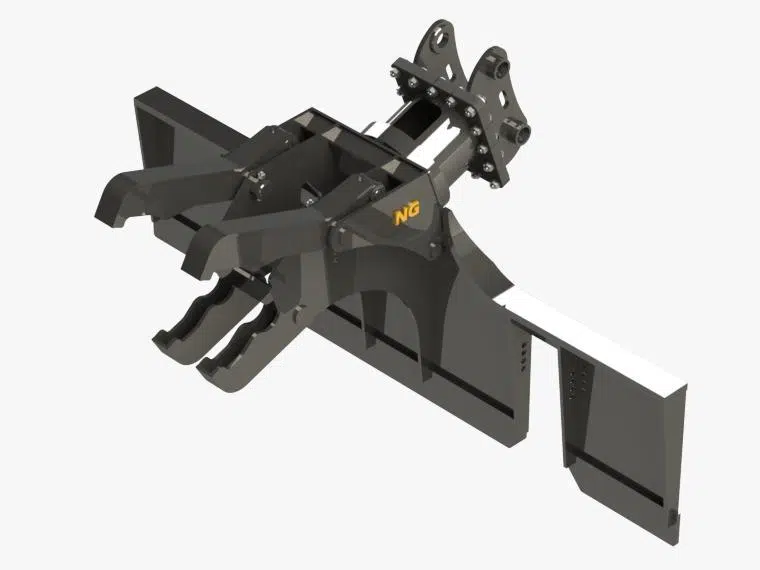

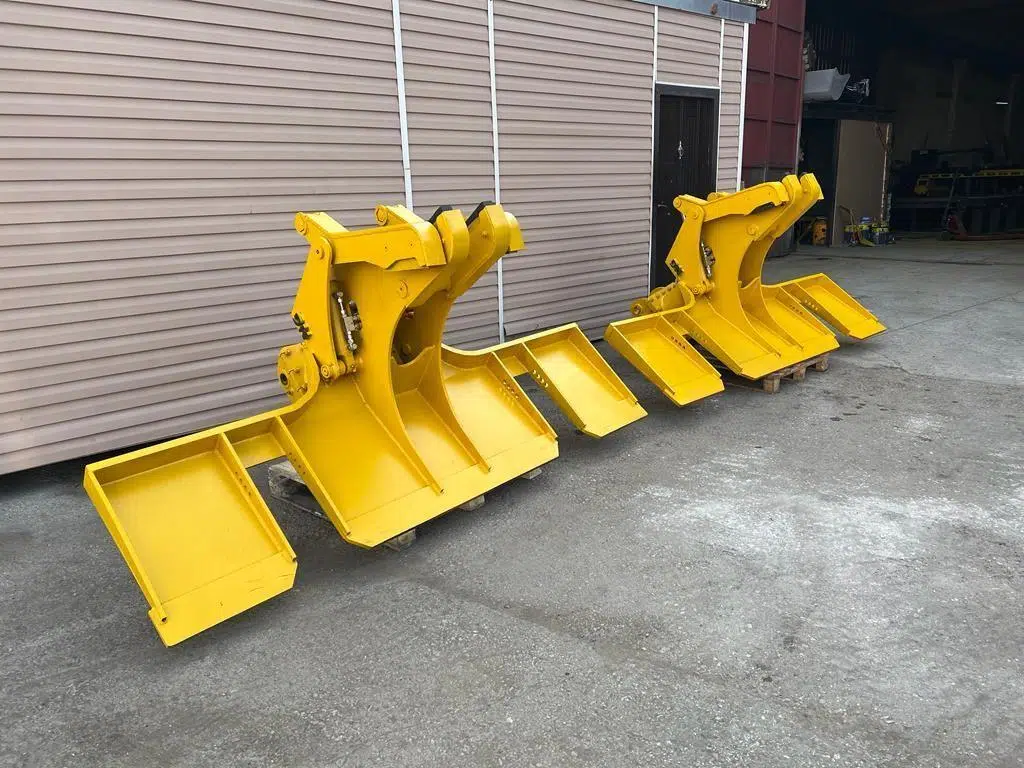

New sleeper changing unit with ballast shield for NG sleepersSleeper Changers ,The new NG sleeper changing unit with integrated ballast shield offers the additional option of bolt-on ballast buckets that can be used to extract the ballast from in between the sleepers and place it next to the track, for example. The plunge depth of the shield can be adjusted. The sleeper is grabbed with the mounted hydraulic gripper and can then be pulled out of the bed from the side. The grab is equipped with a 360° endless rotation. NG At1 sleepers can also be handled by opening the hydraulic gripper and thus clamping the sleeper. Ideal for road rail excavators with 12t to 24t operating weight. A special holding valve guarantees a secure retention of loads even in the case of pressure drops.sleeper-changer-ballast-excavation
Hydraulic Sleeper Changer Blade
Used Railway Sleeper Changers for sale
